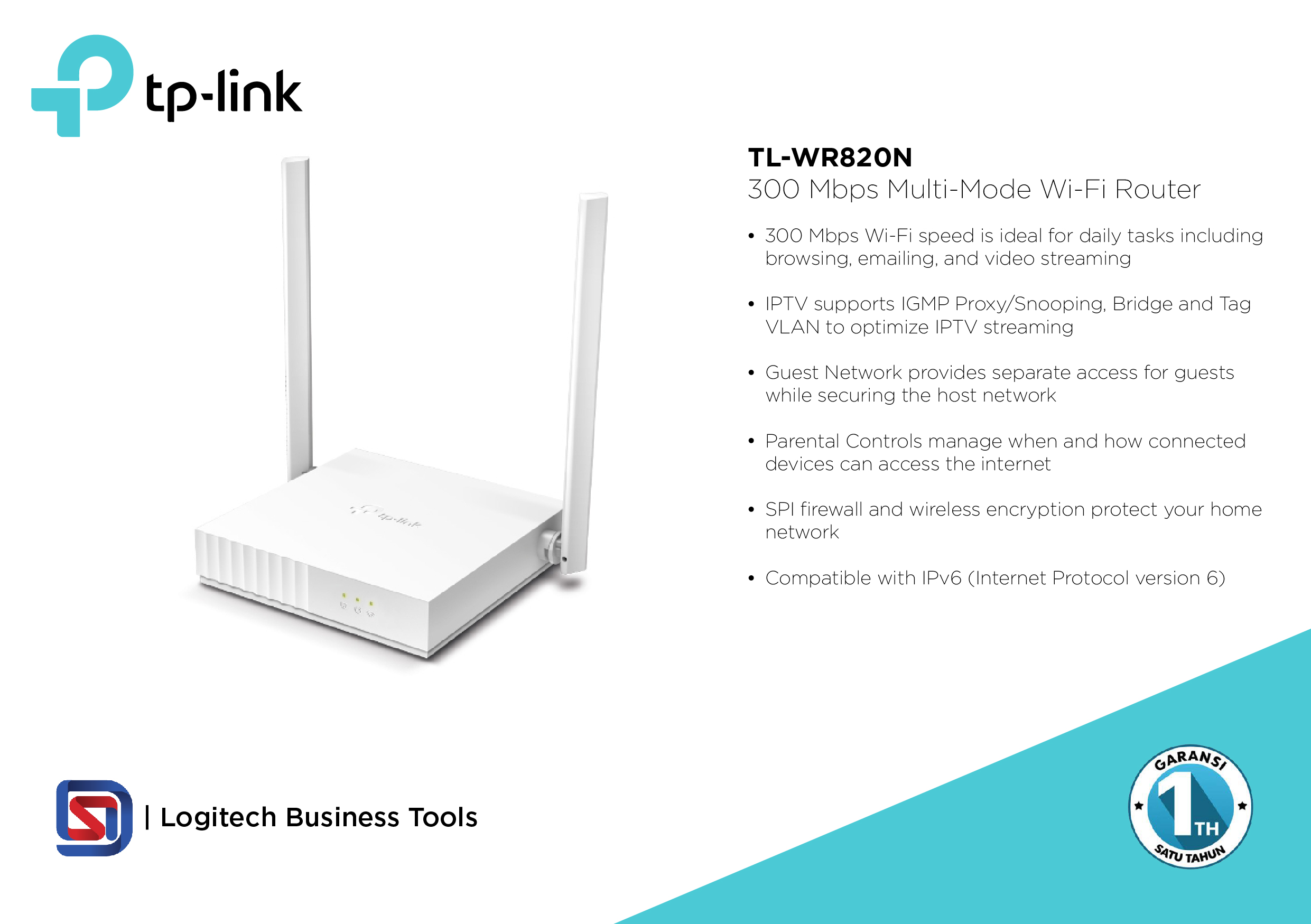

TP LINK- WR820N

Harga

Jumlah

Total

Keterangan Tambahan

WIRELESS

Standards

Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N300
2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses

2× Fixed Antennas

WiFi Capacity

Legacy

Working Modes

Router Mode
Access Point Mode
Range Extender Mode
WISP Mode

HARDWARE

Processor

Single-Core CPU

Ethernet Ports

1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports

Buttons

Reset Button

Power

5 V ? 0.6 A

SECURITY
WiFi Encryption	WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 2.4 GHz Guest Network

SOFTWARE
Protocols	IPv4 IPv6
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

PHYSICAL
Dimensions (W×D×H)	4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Contents	Wi-Fi Router TL-WR820N Power Adapter RJ45 Ethernet Cable Quick Installation Guide

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) FCC: <30dBm
WiFi Reception Sensitivity	270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER

300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Guest Network provides separate access for guests while securing the host network
Parental Controls manage when and how connected devices can access the internet
SPI firewall and wireless encryption protect your home network
Compatible with IPv6 (Internet Protocol version 6)
