HARDWARE FEATURES | |
---|---|
Interface | 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
Physical Security Lock | No |
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
Dimensions ( W x D x H ) | 5.5×3.5×0.9 in. (140×88×23 mm) |
Max Power Consumption | 3.1W (220V/50Hz) |
Max Heat Dissipation | 10.57 Btu/hr |
SOFTWARE FEATURES | |
---|---|
Transmission Method | Store and Forward |
Advanced Functions | Green Technology 802.3x Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) |
OTHERS | |
---|---|
Certification | FCC, CE, RoHs |

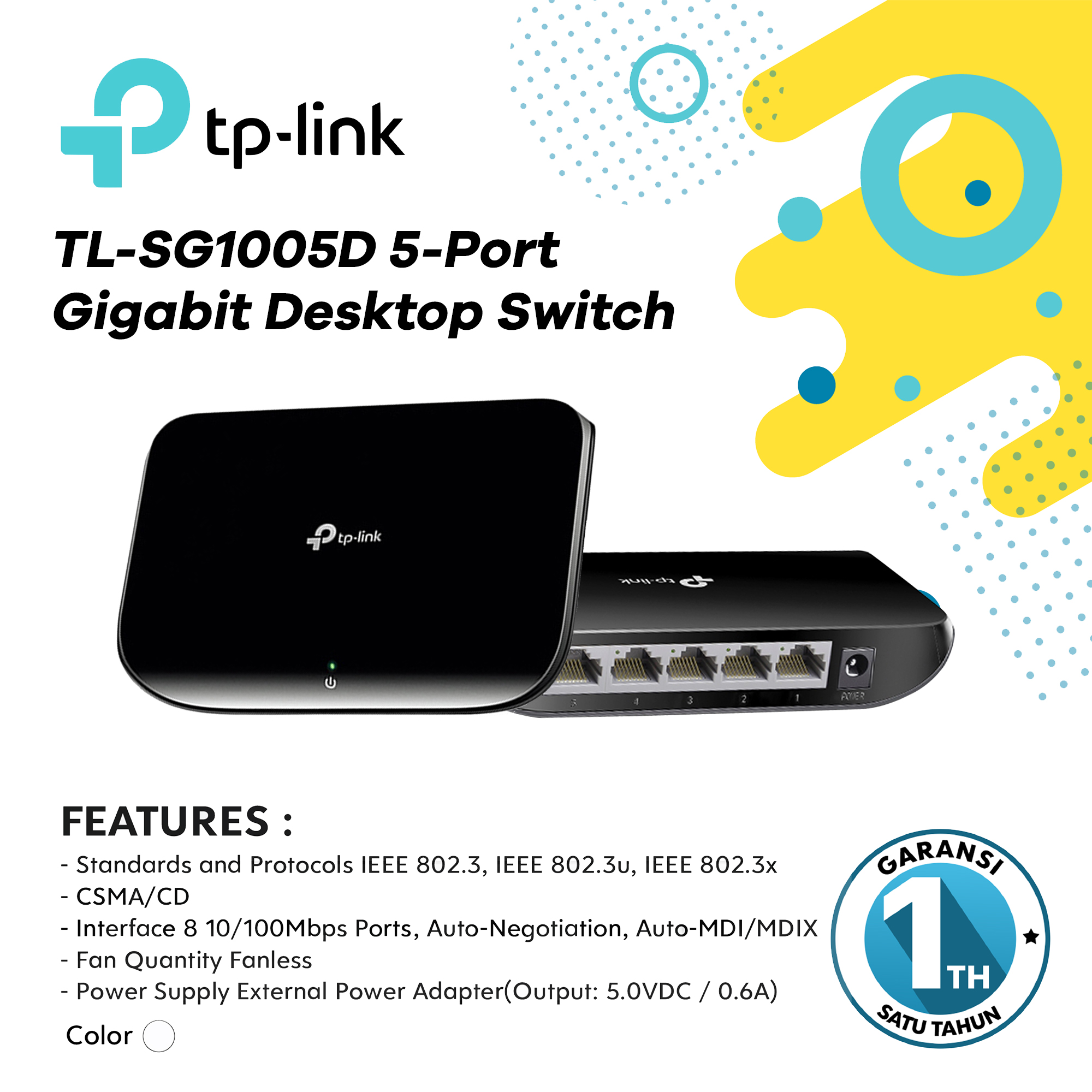

Package Contents | 5-Port Gigabit Desktop Switch TL-SG1005D Power Adapter Installation Guide |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~60? (-40?~140?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
